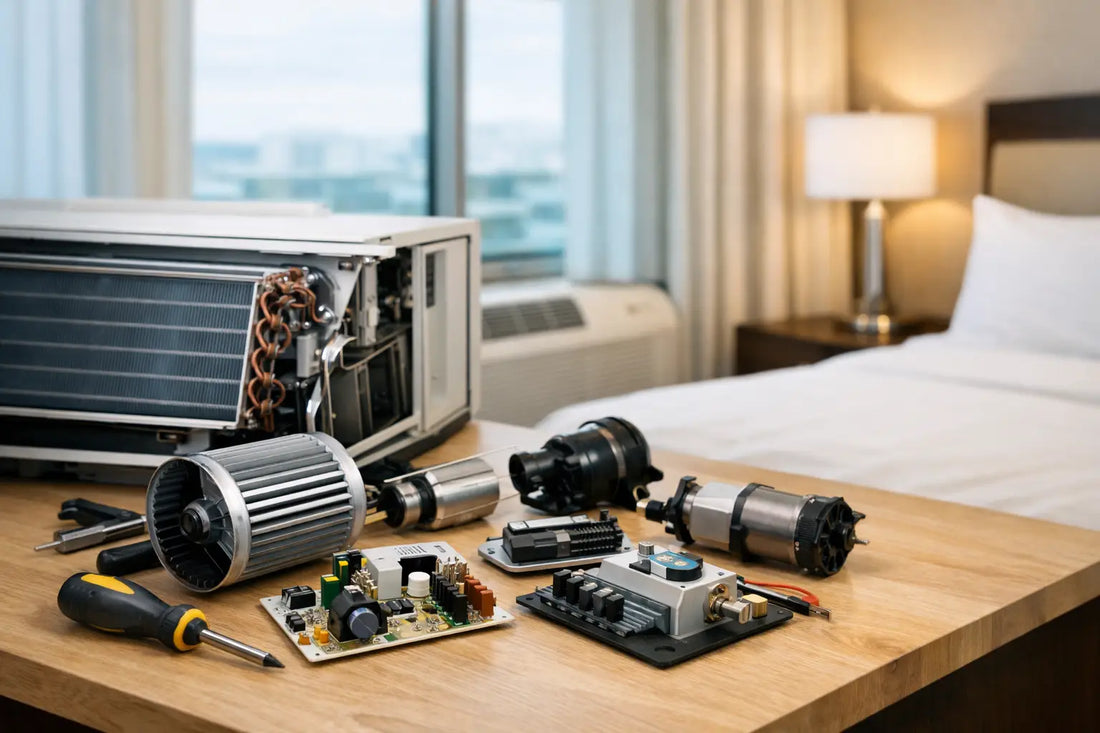

PTAC Parts Compatibility Guide for Property Teams

A failed fan motor, control board, or thermostat can take a guest room or resident unit out of service fast. The cost of the replacement part is rarely the real problem. Ordering a part that does not match the existing PTAC can create return freight, extra labor, delayed repairs, and another uncomfortable room. This PTAC parts compatibility guide gives property teams a practical way to confirm fit before placing an order.

PTAC parts are not universally interchangeable, even when two units look nearly identical from the front. A component must match the unit's manufacturer, model family, electrical configuration, physical layout, and control system. For multi-unit properties, a disciplined verification process protects uptime and helps maintenance teams avoid stocking parts that cannot be used.

Start With the PTAC Nameplate

The unit nameplate is the primary source for a compatibility decision. It is commonly located behind the front cover, on the chassis, or along an interior side panel. Before requesting a quote or placing an order, record the manufacturer, complete model number, serial number, voltage, cooling capacity, and electric heat information.

Do not rely on a property inventory label, a room number, or a general description such as “12,000 BTU PTAC.” Those details are useful, but they do not identify the exact chassis configuration. Within one product line, manufacturers may use different motors, boards, heaters, wiring harnesses, and control packages based on production year and voltage.

A clear photo of the nameplate is often the fastest way to prevent an incorrect order. For a failed component, include a photo of the original part label and its connection points when possible. Part numbers, revision codes, and wire colors help confirm whether an updated replacement is appropriate.

Confirm Electrical Compatibility Before Anything Else

Voltage is a non-negotiable part of PTAC compatibility. Common PTAC configurations include 208/230V and 265V, with varying amperage and electric heat capacities. A component designed for one electrical configuration may not work safely or correctly in another.

This matters most when ordering heaters, control boards, transformers, contactors, and compressor-related components. A heater assembly must match the unit’s voltage and kilowatt rating. A board or transformer must support the proper incoming power and control voltage. Installing a mismatched electrical part can damage the unit, trip breakers, or create a safety issue.

Maintenance teams should also verify the power connection. Cord sets, sub-bases, and receptacle configurations vary by voltage and amperage. A replacement chassis may fit a sleeve physically while still being incompatible with the existing electrical setup.

Check Heat Type and Capacity

A cooling-only unit, straight-cool electric heat unit, and heat pump PTAC may share exterior dimensions, but their internal parts can differ significantly. Heat pump units require components that support reversing-valve operation and defrost logic. Straight-cool units do not.

Capacity matters as well. A 7,000 BTU unit and a 15,000 BTU unit in the same series may use different compressors, fan motors, blower wheels, heaters, or coil assemblies. Match the exact capacity listed on the nameplate rather than assuming parts transfer across the full product family.

Match the Control System, Not Just the Brand

Controls are one of the most common sources of PTAC part-ordering errors. A replacement thermostat, keypad, control board, or wireless module must work with the existing unit controls and the property’s operating setup.

Some PTACs use standard onboard controls. Others are configured for wall thermostats, front-desk energy management systems, occupancy sensors, remote modules, or proprietary digital controls. A board that fits physically may not communicate with the thermostat or accessories already installed in the room.

Before ordering a control-related part, identify whether the unit uses a conventional thermostat, a digital wall thermostat, a wireless thermostat, or a building-managed system. Verify the number of terminals, plug style, board revision, dip-switch settings, and any manufacturer-specific interface module. If the property is replacing boards across multiple rooms, test the approved configuration in one unit first rather than changing an entire floor at once.

Use Original Part Numbers Whenever Possible

The original manufacturer part number is the most dependable match point. It identifies more than the component category. It may distinguish motor speeds, mounting styles, wiring orientation, software revisions, heater ratings, and production changes that are not visible in a product photo.

If the original part number has been discontinued, an approved superseding number may be available. Supersession does not always mean a direct plug-and-play swap. The replacement may require an adapter harness, mounting bracket, revised control setting, or related component change. Confirm those requirements before labor is scheduled.

Generic descriptions should be treated as a starting point, not a final specification. “PTAC fan motor,” “universal board,” or “electric heater kit” is not enough information for a commercial order. The best purchase request includes the complete unit model, original part number, voltage, capacity, and photos.

Verify Physical Fit Inside the Chassis

Physical dimensions matter for components such as fan assemblies, coils, motors, drain pans, front covers, filters, sleeves, and replacement chassis. Even a small difference in mounting-hole location, shaft length, bracket depth, or connector position can stop an installation.

For chassis replacements, verify the existing wall sleeve dimensions and the unit’s front-panel relationship to the room. A chassis from another series can leave gaps, interfere with the sleeve, or fail to align with the outdoor louver system. It may also have different condensate management requirements.

For moving parts, compare the original component directly. Measure mounting centers, shaft diameter and length, blower wheel diameter, coil dimensions, and connector locations as needed. Photographs with a tape measure can help a supplier validate the fit before shipment.

Know When Parts Are Not the Best Repair

Compatibility is only one part of the purchasing decision. A compatible part may restore operation, but it may not be the best value for an aging chassis with repeated failures, damaged coils, refrigerant circuit issues, or corrosion. This is especially true when a property is spending labor dollars on units nearing the end of their useful service life.

A repair is often the right choice when the chassis is structurally sound, the failure is isolated, and the correct replacement part is available. A certified refurbished PTAC may be the better decision when several major components are failing or when a property needs consistent performance across a group of rooms.

For bulk planning, group units by manufacturer, model family, voltage, and age. That process reveals where a small set of approved spare parts can support the fleet and where mixed equipment makes stocking inefficient. It also helps property teams plan phased replacement before peak cooling or heating demand.

Create a Repeatable PTAC Parts Compatibility Process

The strongest maintenance programs do not depend on memory or visual guesses. Build a simple equipment record for every PTAC model at the property. Include the complete model number, voltage, capacity, heat type, control configuration, sleeve type, and approved replacement part numbers.

Keep notes on known superseded parts and any installation changes required by the manufacturer. When the same part fails repeatedly, document the cause rather than only replacing the component. A recurring board failure, for example, may point to a wiring, moisture, voltage, or sensor issue that needs correction.

For urgent repairs and larger fleet needs, Elite PTAC can help commercial buyers verify model-specific replacement options and evaluate whether repair or refurbished replacement makes the most operational sense. Accurate unit information at the start leads to faster fulfillment, fewer installation problems, and more rooms returned to service.

Before the next part order leaves your maintenance budget, take the extra few minutes to verify the nameplate, electrical requirements, controls, original part number, and physical fit. That small step is usually what separates a completed repair from a costly repeat visit.
