Commercial PTAC Installation Guide for Properties
Share
A PTAC replacement is not complete when the unit reaches the property. It is complete when the chassis fits the existing sleeve, starts on the correct electrical circuit, drains properly, and delivers stable heating and cooling in an occupied room. This commercial PTAC installation guide is built for hotel, multifamily, healthcare, and institutional teams that need to replace equipment without creating callbacks, comfort complaints, or avoidable room downtime.
PTAC installation is often treated as a simple slide-in replacement. That can be true when the equipment, sleeve, power connection, and controls all match. In commercial properties, however, small compatibility errors multiply quickly across a floor, building, or portfolio. A disciplined installation plan protects the replacement budget and keeps rooms available for guests, residents, and patients.
Start With a Site Survey, Not a Purchase Order
Before ordering equipment, document what is already installed in each room. The most useful survey records the existing PTAC brand and model, chassis dimensions, wall sleeve dimensions, electrical rating, plug configuration, control type, room orientation, and any visible water damage around the unit.
Do not assume units that look alike are interchangeable. PTAC chassis widths, depths, sleeve designs, rear seals, electrical connections, and control packages vary by manufacturer and series. A unit may physically fit an opening but still fail to seal correctly, drain correctly, or connect to the property’s existing power supply.
For a larger replacement project, assign each room a unit identifier and create a simple matrix before procurement. This allows the maintenance team to separate standard replacements from rooms needing sleeve repair, electrical work, condensate corrections, or wall restoration. It also makes phased installations far easier to schedule.
Verify Capacity Against the Room Load
Existing capacity is a starting point, not automatic proof that the replacement capacity is correct. Review the BTU rating against room size, ceiling height, sun exposure, insulation condition, occupancy, and heat-producing equipment. A south-facing top-floor room with poor windows may have a very different cooling load than an interior-facing room of the same size.
Oversizing is not a free upgrade. An oversized PTAC can cool a room too quickly, shorten run cycles, and leave humidity higher than expected. Undersizing creates long run times, comfort complaints, and unnecessary wear. Where room use or building conditions have changed, confirm the load before repeating the old equipment selection.
Confirm Sleeve, Exterior, and Drainage Conditions
The wall sleeve is part of the PTAC system, not just a metal box in the wall. Inspect it for corrosion, separation from the wall, failed sealant, bent flanges, damaged insulation, and signs of water intrusion. Repairing a sleeve after installing a new or refurbished chassis is more costly and more disruptive than addressing it first.
The sleeve must be level side to side and installed with the manufacturer-required pitch toward the exterior. That slight outward pitch directs condensate away from the room. A sleeve that slopes inward can allow water to enter the wall cavity, damage finishes, create odors, and lead to recurring service calls.
Check the outdoor grille and rear clearance as well. Leaves, lint, landscaping, building debris, or a blocked grille restrict airflow through the outdoor coil. The unit may still run, but capacity drops and compressor stress increases. In properties near coastal air or heavy weather exposure, inspect exterior components more frequently because corrosion can shorten the useful life of both sleeves and grilles.
Drainage requirements depend on the equipment design and local installation conditions. Some PTACs use a base pan configuration intended to manage condensate through outdoor evaporation, while others may require a drain kit or a specific connection method. Follow the unit manufacturer’s instructions and local code requirements. Do not add drains, seal openings, or alter the base pan without confirming the approved configuration.
Match Electrical Requirements Exactly
Electrical mismatch is one of the fastest ways to turn a routine replacement into a failed installation. Read the replacement unit nameplate and compare it with the room’s branch circuit, receptacle, breaker, wire size, and plug type. Confirm voltage, phase, frequency, minimum circuit ampacity, and maximum overcurrent protection.
Many commercial PTAC applications use 208/230-volt equipment, but voltage alone does not establish compatibility. Plug configurations and amp ratings differ. A unit designed for one circuit rating should not be forced onto another receptacle with adapters or field modifications. Those shortcuts can create nuisance trips, damaged components, safety risks, and warranty issues.
Each PTAC should be installed on the dedicated circuit specified for that unit. If breakers trip, outlets show heat damage, voltage is unstable, or wiring condition is uncertain, involve a qualified electrician before commissioning the chassis. This is particularly important in older hotels, apartment buildings, and facilities where equipment may have been changed over decades.

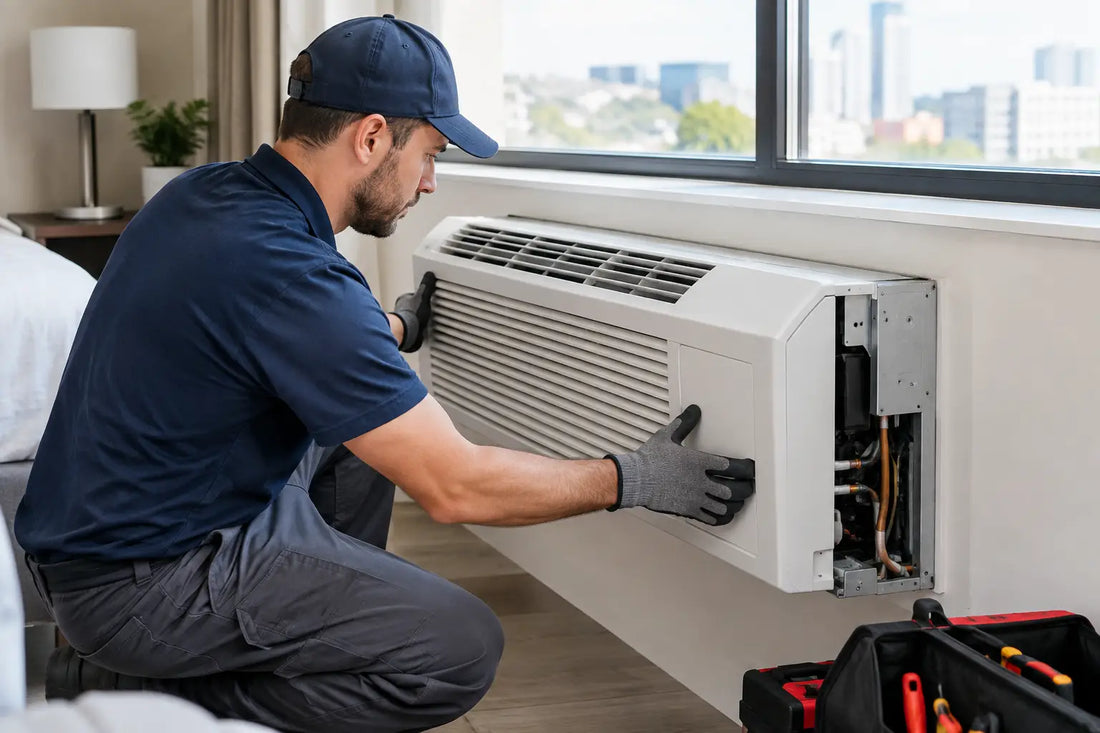

Install the Chassis Without Damaging the Seal
Once the sleeve, exterior condition, and electrical supply are confirmed, prepare the room for installation. Remove the old chassis carefully, protect flooring and furnishings, and clean the sleeve interior. Clear debris from the drain area and inspect the sealing surfaces before the replacement unit goes in.
Install the specified weather seal, foam strips, baffles, and trim components for the unit and sleeve combination. These parts are not cosmetic. They control air bypass, reduce infiltration, support proper airflow separation, and help prevent noise and moisture issues. Reusing flattened or missing seals is a common source of room comfort complaints.
Slide the chassis into the sleeve evenly. Do not force it or use the chassis as a lever against the sleeve. Confirm that it seats fully, that the front panel aligns correctly, and that no wiring, insulation, or seals are pinched. Install the front cover, filters, and any required control accessories only after the unit is fully positioned.
For properties with wireless thermostats, centralized controls, occupancy sensors, or energy management systems, verify compatibility before installation day. A PTAC that heats and cools properly can still create operational problems if it cannot communicate with the property’s selected controls.
Commission Every Unit Before Releasing the Room
A quick power-on test is not enough. Each room should receive a documented functional check before housekeeping, leasing, or front desk staff returns it to service. Allow enough runtime to evaluate both cooling and heating modes when seasonal conditions permit.
At minimum, verify the following during commissioning:
- The unit starts and responds correctly to its controls.
- Supply airflow is clear and consistent at available fan speeds.
- Cooling and heating modes operate as intended.
- The unit drains to the exterior without water entering the room.
- The electrical connection is secure, with no abnormal heat, smell, vibration, or breaker activity.
Listen for abnormal vibration before leaving the room. Rattling panels, scraping fans, compressor noise that is inconsistent with normal operation, or air leaking around the chassis should be corrected immediately. A five-minute adjustment during installation is far less expensive than a guest relocation or a repeat maintenance visit.
Plan Fleet Replacements Around Occupancy and Inventory
For multi-unit properties, the best installation strategy depends on urgency, room availability, and the condition of the fleet. A property with widespread end-of-life failures may need a scheduled room-by-room refresh. A property with isolated failures may be better served by maintaining compatible spare units for fast swaps.
Standardizing models where practical can simplify parts inventory, technician training, filters, controls, and future replacements. It may not be practical in every building, especially where multiple sleeve types or electrical configurations exist. The goal is not forced uniformity. The goal is fewer avoidable variables.
Refurbished PTACs can be a practical fit when the chassis matches the property’s application and the supplier has a documented process for inspection, diagnostics, component replacement, cleaning, sanitizing, performance testing, and final quality control. Ask what is tested, what parts are commonly replaced, how units are packed for freight, and what warranty protection applies. Elite PTAC supports commercial buyers with certified refurbished inventory, a one-year warranty, and bulk-order capability for properties managing replacement work at scale.
Avoid the Installation Shortcuts That Create Callbacks
Most PTAC callbacks trace back to a short list of preventable issues: ordering by appearance rather than model compatibility, ignoring sleeve condition, using the wrong electrical connection, skipping seals, failing to verify drainage, and releasing rooms before full testing.
The pressure to restore a room quickly is real. Still, speed should come from preparation, correct inventory, and an organized installation sequence - not from bypassing inspection steps. When a unit is properly matched and commissioned, it should enter service as dependable equipment rather than a pending work order.
Treat each installation as a repeatable property standard. A documented survey, compatible unit selection, qualified electrical verification, careful sleeve preparation, and recorded startup testing will protect room revenue and give your maintenance team a cleaner path for every replacement that follows.
