How to Measure PTAC Sleeve Size Before Ordering

A replacement PTAC can be the right capacity, voltage, and brand yet still create an installation problem if it does not fit the existing wall sleeve. Knowing how to measure PTAC sleeve dimensions correctly protects your maintenance schedule, avoids field modifications, and helps prevent an occupied room from staying out of service longer than necessary.

For hotels, apartments, senior living communities, healthcare facilities, and campus housing, sleeve measurement should happen before an order is placed, not after a unit arrives. A few accurate measurements and photos give your supplier the information needed to verify compatibility before freight is scheduled.

Start by Separating the Sleeve From the PTAC Unit

The PTAC chassis is the air-conditioning and heating unit that slides into the wall opening. The sleeve is the metal enclosure permanently installed through the exterior wall. It supports the chassis, directs condensate as designed, and connects to the exterior grille.

These components are related, but they are not interchangeable by default. Two chassis may look similar at the room side while requiring different sleeve dimensions, rear grille configurations, or control-door clearances. Do not measure the decorative room cabinet alone. The cabinet can conceal the true sleeve opening and may extend beyond it.

If the existing chassis is still in place, remove it according to the manufacturer’s service procedure before measuring. Disconnect power first. PTAC equipment is heavy, and commercial maintenance teams should use appropriate lifting support when removing a unit from the sleeve.

Tools Needed to Measure a PTAC Sleeve

Use a rigid tape measure with clear fractional markings. A 25-foot tape measure is usually sufficient. A flashlight helps inspect the interior and rear of the sleeve, while a phone camera is valuable for documenting labels, corrosion, grille details, and measurements.

Record each dimension in inches, including fractions. For example, write 42 1/4 inches instead of rounding to 42 inches. A small difference can determine whether a chassis slides in correctly, whether the room cabinet seats properly, and whether the unit’s outdoor section aligns with the grille.

For multi-room properties, create a simple room-by-room worksheet. Include building, floor, room number, sleeve dimensions, existing unit make and model, electrical rating, and any visible damage. This process often reveals that a property has more than one sleeve type, even when the installed units appear similar from the guest room.

How to Measure PTAC Sleeve Dimensions

The critical measurements are interior width, interior height, interior depth, and the relationship between the sleeve, exterior wall, and rear grille. Measure the sleeve itself, not the drywall opening or the trim around the unit.

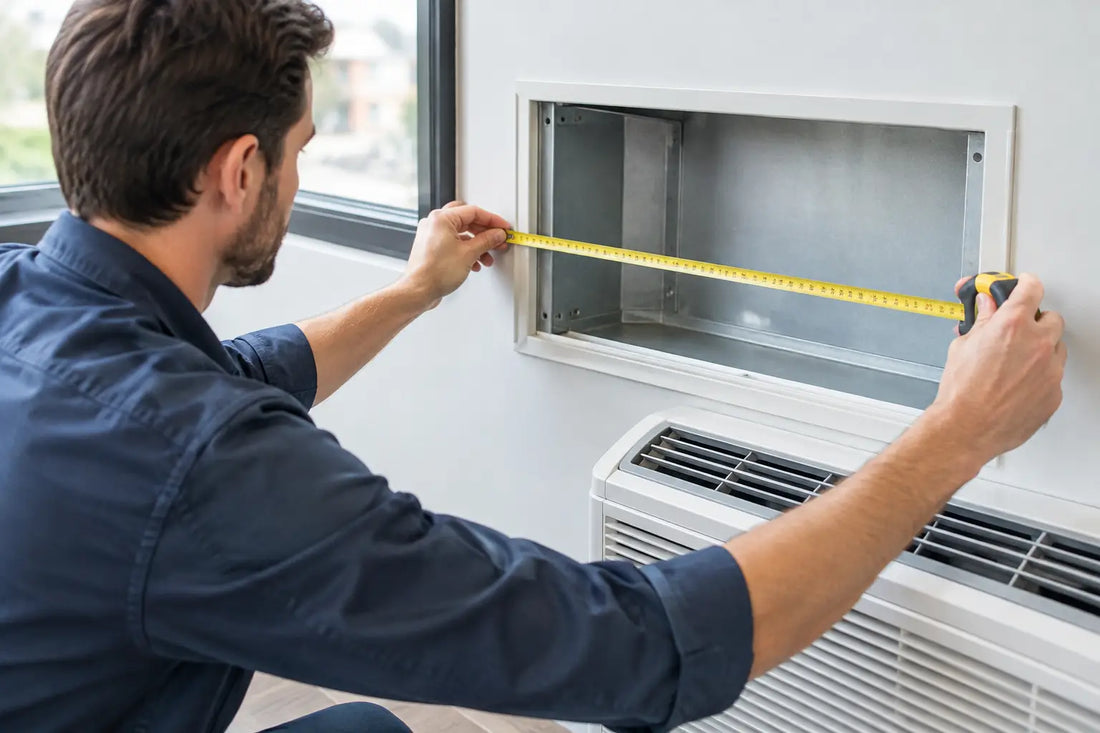

Measure the interior width

Measure the clear inside width from the left interior wall of the sleeve to the right interior wall. Take the measurement at the front, center, and rear of the sleeve. Older sleeves can be bent, bowed, or narrowed by rust, paint buildup, and previous repairs.

Record the narrowest usable measurement. A new chassis must clear the tightest point, not simply fit at the widest portion near the room-side opening.

Measure the interior height

Measure from the sleeve floor to the underside of the sleeve’s top panel. Again, check at more than one location. Look for a raised drain pan, bent metal, debris, or insulation that reduces the clear opening.

Do not assume a chassis that is slightly shorter than the sleeve will work. The unit may need specific vertical alignment to engage the rear grille, drain correctly, and allow the front cabinet to fit without gaps.

Measure the interior depth

Measure from the room-side front edge of the sleeve to the interior rear wall or rear grille plane. Depth is often overlooked because the unit may appear to slide into place during a quick visual check. However, a chassis that is too long can interfere with the grille or project improperly at the room side. A unit that is too short may not seal or align as intended.

Take the depth measurement along both side walls and at the center. If the sleeve was installed unevenly in the wall, the usable depth may vary.

Check the front opening and room-side projection

Measure the face opening where the chassis enters, especially if the sleeve has a flange, lip, or heavy trim. Then note how far the sleeve projects into the room and whether furniture, draperies, or wall finishes limit cabinet clearance.

This matters most during replacement projects where a newer chassis uses a different room cabinet or control-door arrangement. A sleeve-compatible unit may still require a cabinet or trim solution that works with the finished room wall.

Inspect the rear grille and exterior clearance

From outside the building, photograph the rear grille and measure its visible width and height where practical. Note whether the grille is stamped into the sleeve, attached separately, heavily painted, damaged, or obstructed by landscaping, screens, louvers, or masonry.

The rear grille is not cosmetic. It affects condenser airflow and can be specific to a sleeve family. A mismatch may restrict airflow, reduce capacity, increase compressor stress, and shorten equipment life. If exterior access is limited, provide clear photos from the best available angle and identify the sleeve or chassis model number.

Find the Existing Model and Sleeve Identification

Measurements are essential, but equipment identification adds a second level of verification. Look for labels on the existing chassis, sleeve, room cabinet, or exterior grille. The chassis data plate is commonly found behind the front cover, along a side panel, or near the control area.

Record the complete model number, not just the brand name. Model prefixes, suffixes, and production series can identify whether the equipment uses a standard sleeve, a manufacturer-specific sleeve, or a particular rear-grille arrangement.

If a sleeve label is missing, send the measurements with photos of the chassis front, the empty sleeve interior, the room-side opening, and the exterior grille. For a bulk replacement project, document several representative rooms before assuming every sleeve is identical. One renovation phase, wing addition, or past emergency replacement can introduce a different configuration.

Do Not Rely on Nominal Sizes Alone

PTAC sleeves are often described with nominal dimensions, but nominal sizing is not a field measurement. A sleeve called a 42-inch sleeve may have a different clear interior dimension depending on the manufacturer, construction, and flange design.

Standardized-looking PTAC equipment also creates false confidence. Some common chassis widths may fit many installations, but compatibility depends on more than width. Depth, height, coil position, grille orientation, drainage design, and room cabinet fit all affect whether the replacement is appropriate.

A direct replacement is generally the lowest-disruption path when the existing sleeve is structurally sound and compatible with an available chassis. Replacing the sleeve may be the better decision when there is severe corrosion, water damage, improper pitch, restricted airflow, or no compatible chassis option. Sleeve replacement adds labor and exterior-wall work, so that decision should be made before equipment is ordered in volume.

Common Measurement Errors That Delay PTAC Replacement

The most common error is measuring only the visible room opening. That opening can be larger than the actual sleeve and tells you little about usable depth or rear-grille compatibility.

Another frequent issue is measuring one room and applying those numbers to an entire property. This works only after maintenance verifies that the sleeves, grilles, and installed chassis are consistent across the project scope. Properties with multiple building eras should be treated as mixed-equipment sites until proven otherwise.

Do not ignore sleeve condition. A rusted sleeve can appear usable until the old chassis is removed. Inspect the bottom pan, side seams, rear connection points, and any area showing staining or corrosion. Water intrusion, missing insulation, and bent rails can turn a simple chassis swap into a repair project.

Finally, do not use measurements to bypass electrical verification. Sleeve fit does not confirm that a replacement has the correct voltage, amperage, plug configuration, heating type, or controls. Capture the electrical data from the existing unit as part of the same survey.

Send Complete Information Before You Request a Quote

A complete replacement request helps avoid back-and-forth and supports faster equipment matching. Include sleeve width, height, and depth; existing chassis model number; electrical information; photos of the empty sleeve and rear grille; quantity needed; and the room or property type.

For large orders, identify whether replacements will be installed all at once or phased by floor, building, or season. That information helps plan freight delivery, staging space, and the timing of room downtime. Elite PTAC works with commercial properties that need tested PTAC replacements, refurbished equipment options, and volume-order support without treating every room as a one-off purchase.

Measure the sleeve carefully, document what you find, and verify the match before the order leaves the warehouse. That small amount of preparation is often what keeps a replacement project moving room by room instead of stopping at the first unit that will not slide into place.
