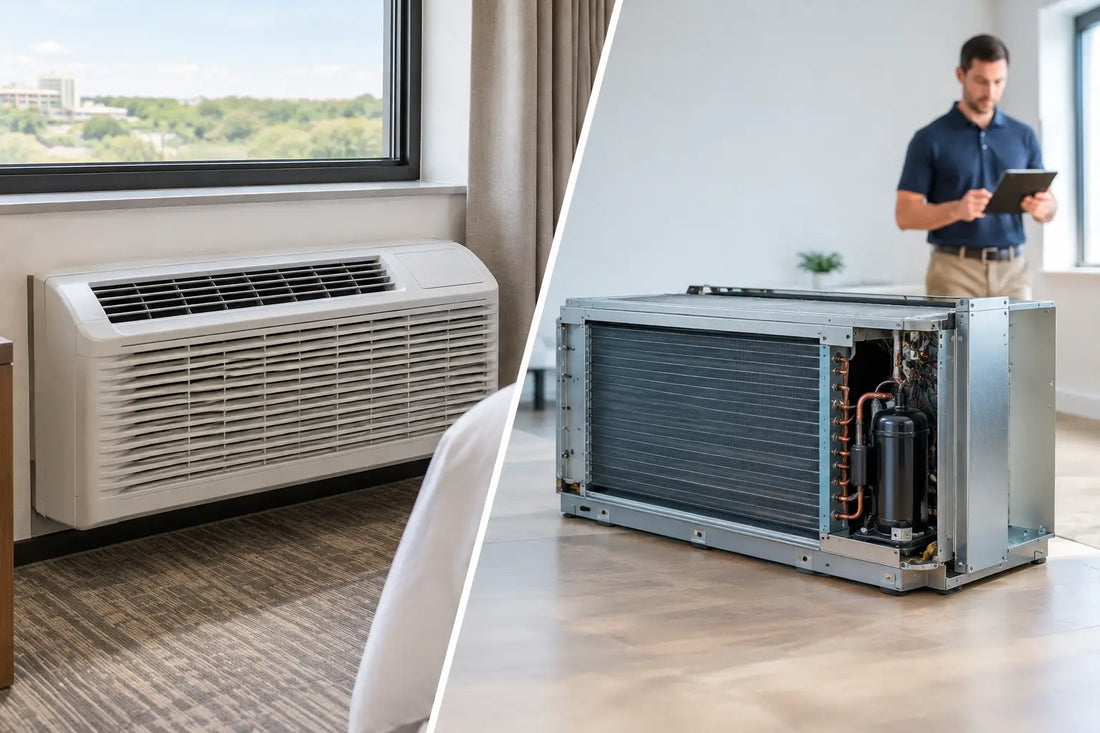

PTAC Sleeve Versus Chassis for Property Managers

A PTAC replacement can arrive at a property, look nearly identical to the unit being removed, and still fail to slide into the wall opening. That is why the distinction between a PTAC sleeve versus chassis matters before a purchase order is approved. The sleeve and chassis work together, but they are not interchangeable terms and should not be ordered as if they are.

For hotels, apartments, healthcare facilities, and campus housing, getting this right protects uptime, maintenance labor, and replacement budgets. A chassis may be a practical replacement without wall construction. A damaged or incompatible sleeve, however, can turn a simple room turnover into a more involved project.

What Is a PTAC Sleeve?

The PTAC sleeve is the metal enclosure installed permanently through the exterior wall. It creates the opening that supports the air conditioner and provides the pathway between the room and the outdoor side of the building. Once installed, the sleeve normally remains in place for many years, even as one or more chassis units are replaced.

A sleeve is not a complete air conditioner. It does not contain the compressor, fan motors, control board, coils, or refrigerant system. Its job is structural and protective: it holds the operating equipment in the wall, helps direct airflow, and supports proper weather protection when paired with the correct chassis, grille, and sealing components.

Sleeves are often overlooked because they are mostly hidden once the unit is installed. That can be costly. A sleeve with corrosion, a bent frame, poor drainage, damaged insulation, or incorrect dimensions can compromise the performance of an otherwise dependable replacement chassis.

Why sleeve condition matters

The sleeve must be level, square, secure, and properly flashed at the exterior wall. If it is tilted inward, water management becomes a concern. If the sleeve has rusted through or shifted in the wall, the chassis may not seat correctly. Air leaks around the cabinet can also create drafts, moisture concerns, and unnecessary strain on the equipment.

Before ordering a replacement unit across a large property, maintenance teams should inspect representative sleeves from multiple rooms. A single room may have unusual damage, but recurring corrosion or sizing problems can point to a portfolio-wide issue that should be addressed in the procurement plan.

What Is a PTAC Chassis?

The chassis is the complete operating portion of the PTAC system. It slides into the sleeve and contains the components responsible for heating, cooling, airflow, drainage, and temperature control. When someone refers to replacing a PTAC unit, they usually mean replacing the chassis.

Depending on the model, the chassis can include electric heat, heat pump operation, hydronic heat capability, or a combination of these functions. It also contains the electrical components and controls that determine how the unit communicates with a wall thermostat, occupancy system, or onboard control panel.

The chassis is designed to be removable. That serviceability is one reason PTAC equipment remains a practical choice for multi-room properties. Instead of disturbing the wall opening, a technician can often remove the failed chassis, inspect the sleeve, and install a compatible replacement in a fraction of the time required for a full HVAC renovation.

A chassis is not automatically universal

Many purchasing problems begin with the assumption that all PTAC chassis units fit all existing sleeves. They do not. Overall width and height may be similar across common products, but depth, front panel configuration, rear vent alignment, control compatibility, electrical requirements, and drainage design can vary by manufacturer and series.

A chassis that physically fits may still be the wrong replacement if it requires a different power connection, does not match the property’s control setup, or uses an incompatible outdoor grille and wall sleeve system. For that reason, a reliable replacement decision starts with the existing model number, serial information, sleeve measurements, voltage, amperage, and heating configuration.

PTAC Sleeve Versus Chassis: The Purchasing Difference

The simplest way to separate the two is this: the sleeve stays in the wall, while the chassis does the heating and cooling. But the purchasing difference is more detailed than that.

When a chassis fails because of compressor issues, board failure, refrigerant-system problems, or age-related wear, replacement may be straightforward if the sleeve is sound and the new unit is verified compatible. This approach can reduce labor, preserve the room finish, and get a guest room or resident unit back in service quickly.

When the sleeve is damaged, corroded, incorrectly installed, or incompatible with the replacement platform, the scope changes. The property may need a sleeve replacement, exterior grille work, wall repair, or modifications to maintain correct drainage and weather protection. That is a capital planning issue, not just a maintenance call.

For large orders, separating sleeve needs from chassis needs avoids overbuying. A property may need 80 replacement chassis units but only 10 sleeves for rooms where corrosion or construction damage is present. Ordering based on a room-by-room equipment survey provides a more accurate budget and prevents unnecessary disruption.

How to Confirm Replacement Compatibility

A replacement PTAC should be evaluated as a system, not as a standalone box. The existing chassis data plate is the best starting point. Record the manufacturer, model number, voltage, heater type, cooling capacity, and any control configuration before the old unit is removed.

Next, inspect the sleeve. Measure the inside width, height, and depth, and note the condition of the base pan area, insulation, rails, seals, and exterior grille. Photographs of the unit in place and the empty sleeve are useful when a purchasing team needs to confirm fit before placing a bulk order.

Electrical compatibility deserves equal attention. PTAC units are available in different voltage and plug configurations, including common 208/230-volt arrangements. A mismatch can delay installation or require electrical work that was not part of the original budget. Heating type also matters. A room designed around electric heat may not have the piping or controls needed for a hydronic replacement.

Finally, verify controls. Some properties use unit-mounted controls, while others rely on wall thermostats, central energy-management systems, occupancy sensors, or front-desk setback strategies. A compatible chassis must support the operating approach already in place, or the property must plan for control changes across every affected room.

When Reusing the Sleeve Makes Sense

Reusing an existing sleeve is typically the efficient choice when it is structurally sound, properly installed, and approved for the intended replacement chassis. It minimizes construction work and keeps the project focused on the equipment that actually requires replacement.

This is especially valuable in occupied buildings. Hotels can turn rooms faster. Assisted living and healthcare facilities can limit disruption. Apartment operators can complete replacements with less wall work and fewer finish repairs.

However, reuse should not mean guesswork. A sleeve that appears acceptable from the room side may have hidden exterior corrosion or drainage problems. Inspecting it before installation is less expensive than pulling a new chassis after a leak, vibration issue, or poor fit is discovered.

When a New Sleeve Is the Better Decision

A new sleeve is often justified when the existing cabinet has severe corrosion, bent mounting surfaces, water damage, incompatible dimensions, or evidence of repeated air and water intrusion. It may also be necessary when a property changes to a PTAC platform with different sleeve requirements.

There is more labor involved, but replacing a failed sleeve can protect the investment in the new chassis. Installing quality-tested equipment into a compromised wall cabinet is not a cost-saving measure if the condition shortens service life or creates building-envelope problems.

For planned renovations, replacing sleeves in groups can be more efficient than handling them one room at a time. The right approach depends on occupancy schedules, labor availability, exterior access, and whether the project includes new grilles, wall repairs, or room finish updates.

Refurbished Chassis Units and Existing Sleeves

Certified refurbished PTAC chassis units can be a strong fit for properties that need dependable replacements without the cost of purchasing all-new equipment. The key is buying from a supplier that verifies performance and helps confirm the replacement is appropriate for the existing sleeve and electrical setup.

A disciplined refurbishment process should include inspection, diagnostics, replacement of failed components, cleaning, sanitizing, performance testing, and final quality control. That process matters because commercial buyers need more than a unit that powers on. They need equipment ready for repeated room-level operation.

Elite PTAC supports commercial replacement planning with certified refurbished inventory, a 1-year warranty, nationwide freight shipping, and bulk-order capability. For a multi-unit project, providing existing model information and sleeve details before quoting helps prevent fitment delays after delivery.

Build the Order Around Field Information

The most efficient PTAC replacement projects begin with a field survey, not a product photo. Identify which rooms need chassis replacement, which sleeves need repair or replacement, and which units have unique electrical or control requirements. Group equipment by model family and condition so purchasing can order accurately and maintenance can stage installation work efficiently.

A PTAC chassis can be replaced quickly when the sleeve, power, controls, and grille have already been verified. That preparation turns an urgent room outage into a controlled maintenance task and gives your property a clearer path to dependable comfort.
